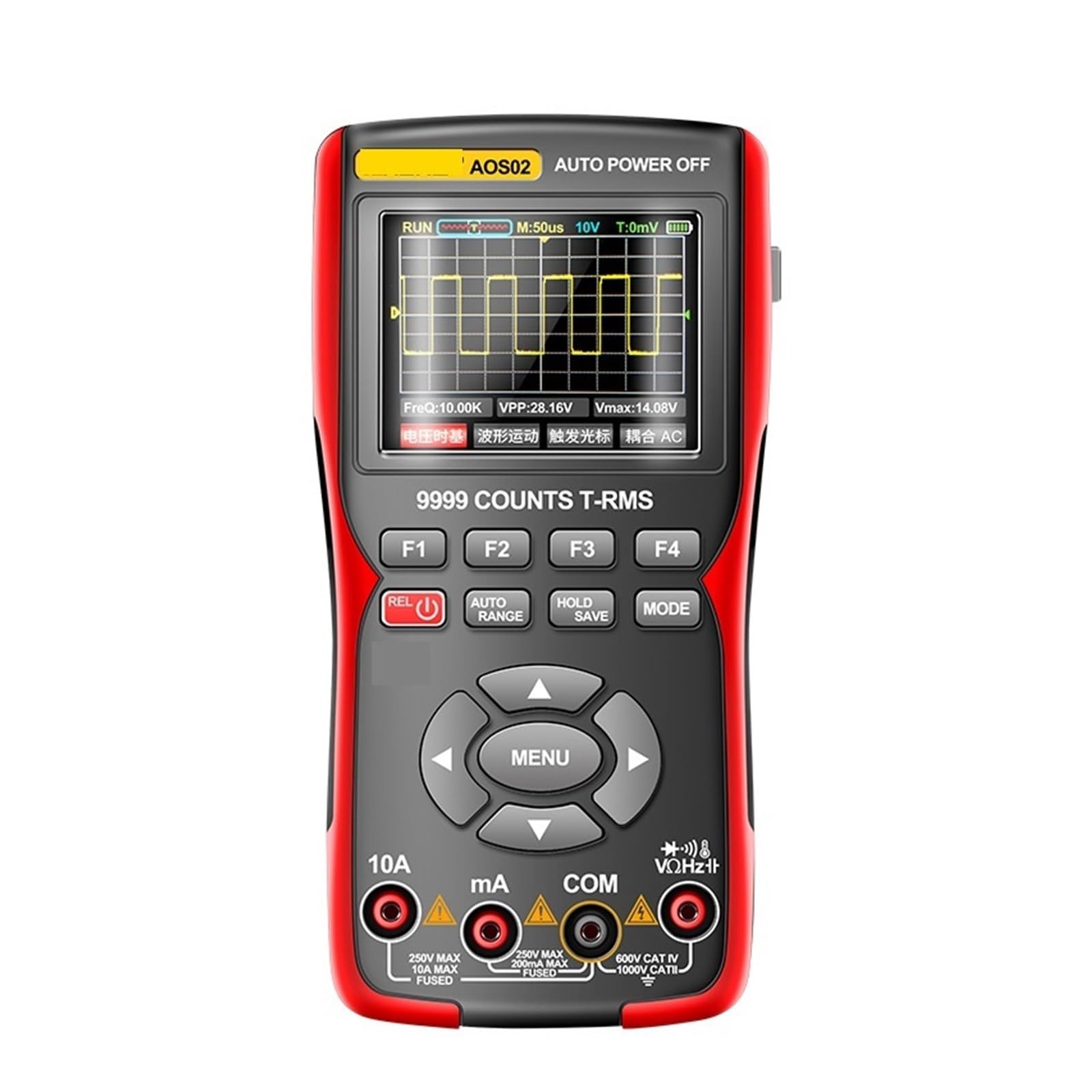

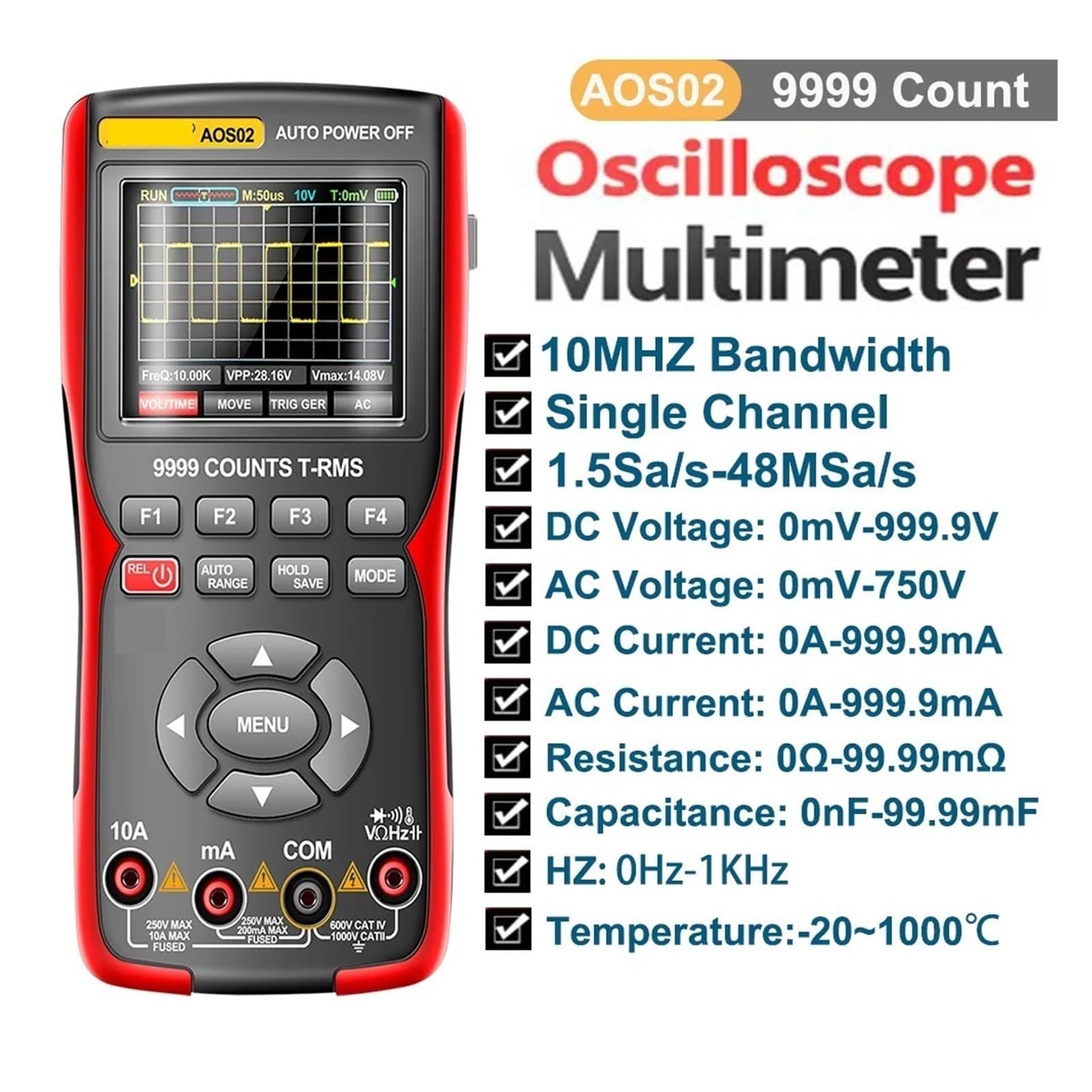

Osciloscopio digital, Professional Digital Oscilloscope Multimeter, 10MHz/50MHz Waveform Output Hub(AOS02)

- 3-in-1The oscilloscope multimeter is a dual-channel handheld device with both oscilloscope and multimeter and signal generator functions, featuring a 3.5" IPS display, 50MHz bandwidth, 280MSa/s fast real-time sampling rate, 25,000 counts, 128Kb recording depth, and tri-mode switching between oscilloscope and multimeter and signal generator. Easy to use and improve work efficiency.
- Oscilloscope Mode2-channel handheld oscilloscope with 50MHz bandwidth, 280MSa/s real-time sampling rate, 128kb recording depth, automatic measurement function, auto/normal/single trigger function, vertical sensitivity 20mv/div-10v/div, support waveform image storage and export.

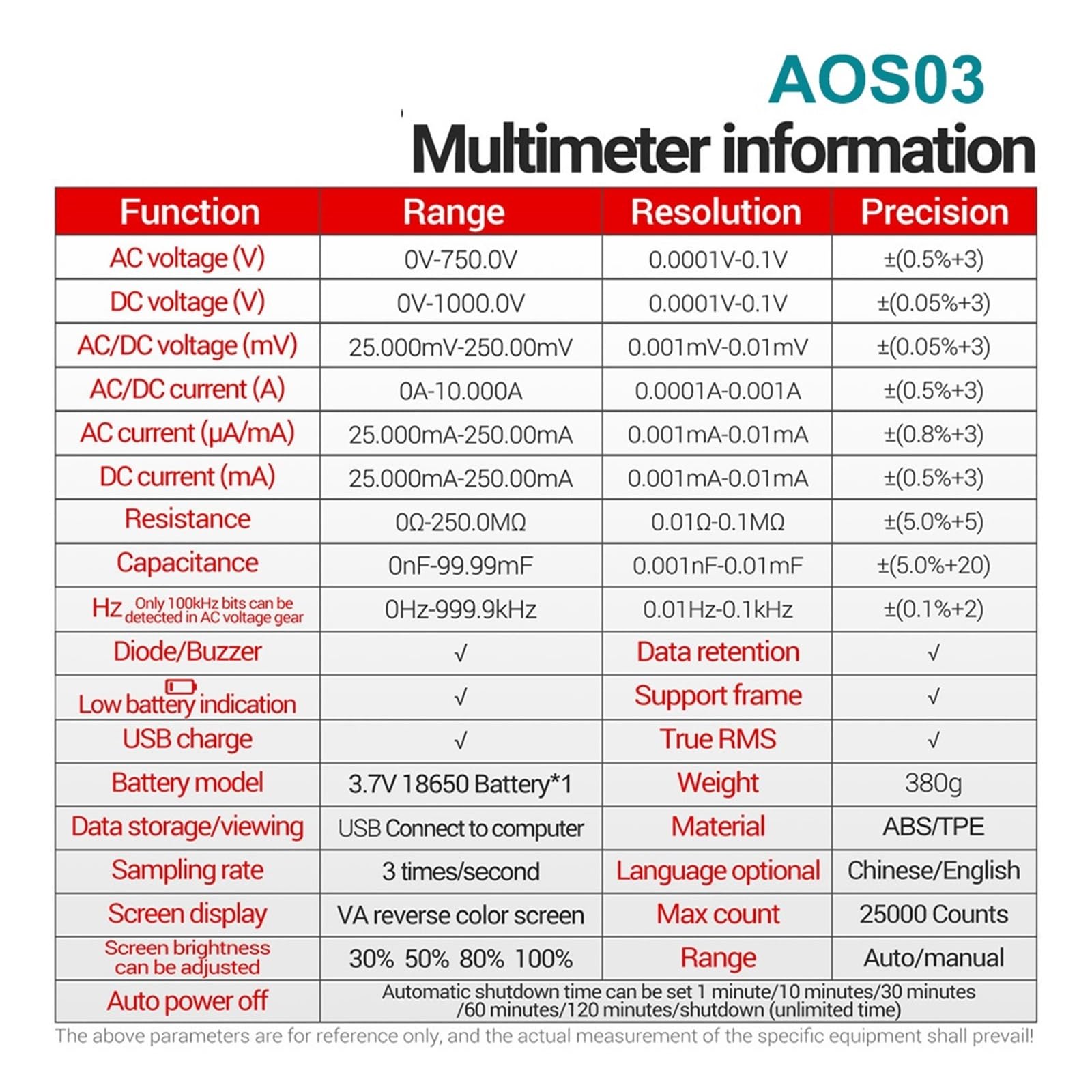

- Multimeter Mode25000 counts; AC Voltage: 0V-750.00 V; DC Voltage: 0V-1000.0 V; DC/AC Current: 0A-10.000A; Resistance: 0-250.00M; Capacitance: 0nF-99.99mF Frequency: 0Hz-999.9 kHz; Diode measurement. Versatile measuring instrument ideal for professionals, factories, schools, hobbyists and families.
- Excellent designDouble injection molded ABS and TPE reinforced structure, excellent impact resistance and durability; large font design, easy to read data. Equipped with signal generator function, can output sine wave, square wave, sawtooth wave, full wave, half wave.
- Waveform Storage and ViewingThe oscilloscope automatically stores the current measurement waveform data in the form of run number and image in the memory; connect the oscilloscope to the computer by connecting the Type-C cable, click on the USB flash drive and open the image folder to access or download the waveform to a safer location in the computer for easy backup and analysis. Auto Power Off: You can choose the auto power off time.
